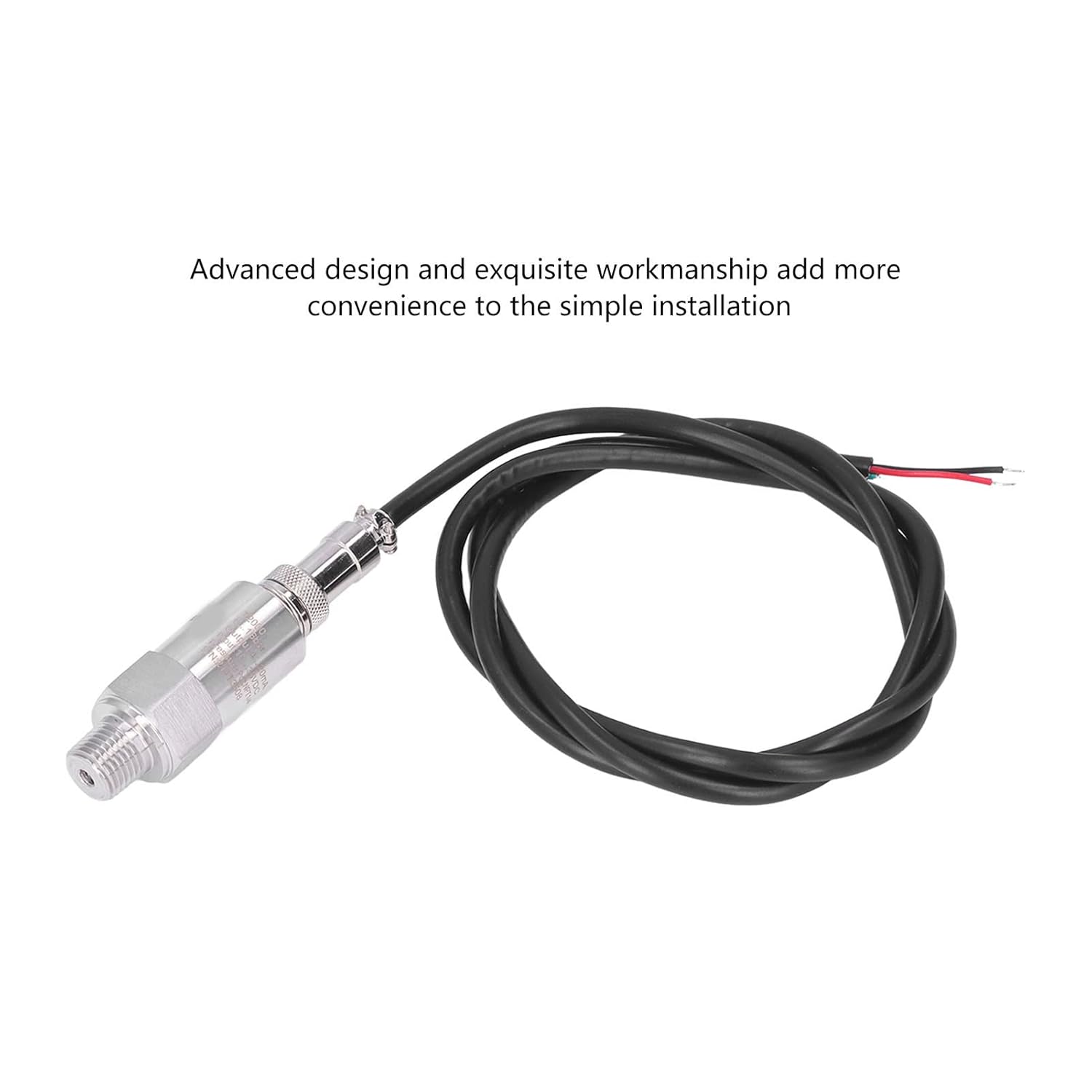

Pressure Transmitters Yuecoom Pressure Transducer, Pressure Sensor Sender Universal 0‑16bar Accurate NPT1/4 4‑20mA Output
Product details
| Management number | 211156952 | Release Date | 2026/04/04 | List Price | $36.00 | Model Number | 211156952 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specification: Item Type: Pressure Transmitter Pressure Range: 0-16bar Overload Pressure: 1.5 times the rated pressure. Breaking Pressure: 3.0 times the rated pressure. Accuracy: ±1.0%F.S Stability: ±0.5%F.S/year Working Temperature: -20~+80℃ Temperature: -10~+70℃ Storage Temperature: -40 ~100℃ Measured Medium: All corrosive media compatible with 1Cr18Ni9Ti and ceramics. Electrical Performance: 2 wire system. Output Signal: 4-20mA Power Supply: 10-36VDC Electrical Connection: Aviation Plug Shell Protection Level: IP65 Pressure Port: NPT1/4 Pressure Form: Gauge pressure G. Certification Items: Safety explosion proof type E, RoHS, EU electrical safety standards CE. Electromagnetic emission: EN50081-1/2. Electromagnetic sensitivity: EN50082-2. Package List: 1 x Pressure Transmitter 1 x User Manual Note:1. Measured at 25℃, including linearity, repeatability and hysteresis;2. Unit Conversion: 1kgf/CM = 14.2psi; 1bar = 14.5psi.
- Safer Working: The pressure transducer equipped with sensitive ceramic diaphragm with high overload capacity, works with great stability.
- Accurate Uses: The pressure transducer using ASIC technology, the transmitter has calibration and digital compensation for high accuracy.
- Good Material: Stainless steel material and sturdy sturdy structure make it durable against wearing and corrosion.
- Broad Utility: Enables standard voltage and current output mode, can be applied for both civil and industrial use.
- Easy to Install: Advanced design and exquisite workmanship add more convenience to the simple installation.
| Model | ed768ad4-304d-4b32-ad40-d14ae88ff3f9 |
|---|---|
| Brand Name | Yuecoom |
| Style Name | Digital,Sturdy |
| Output Type | electrical |
| Manufacturer | Yuecoom |
| Material Type | Stainless Steel |
| Mounting Type | Flange Mount |
| Current Rating | 20 Milliamps |
| Measuring Range | 0-16bar |
| Measurement Accuracy | ±1.0%F.S |
| Maximum Supply Voltage | 36 Volts (DC) |
| Upper Temperature Rating | 80 Degrees Celsius |
| Specific Uses For Product | Pressure,Temperature |
