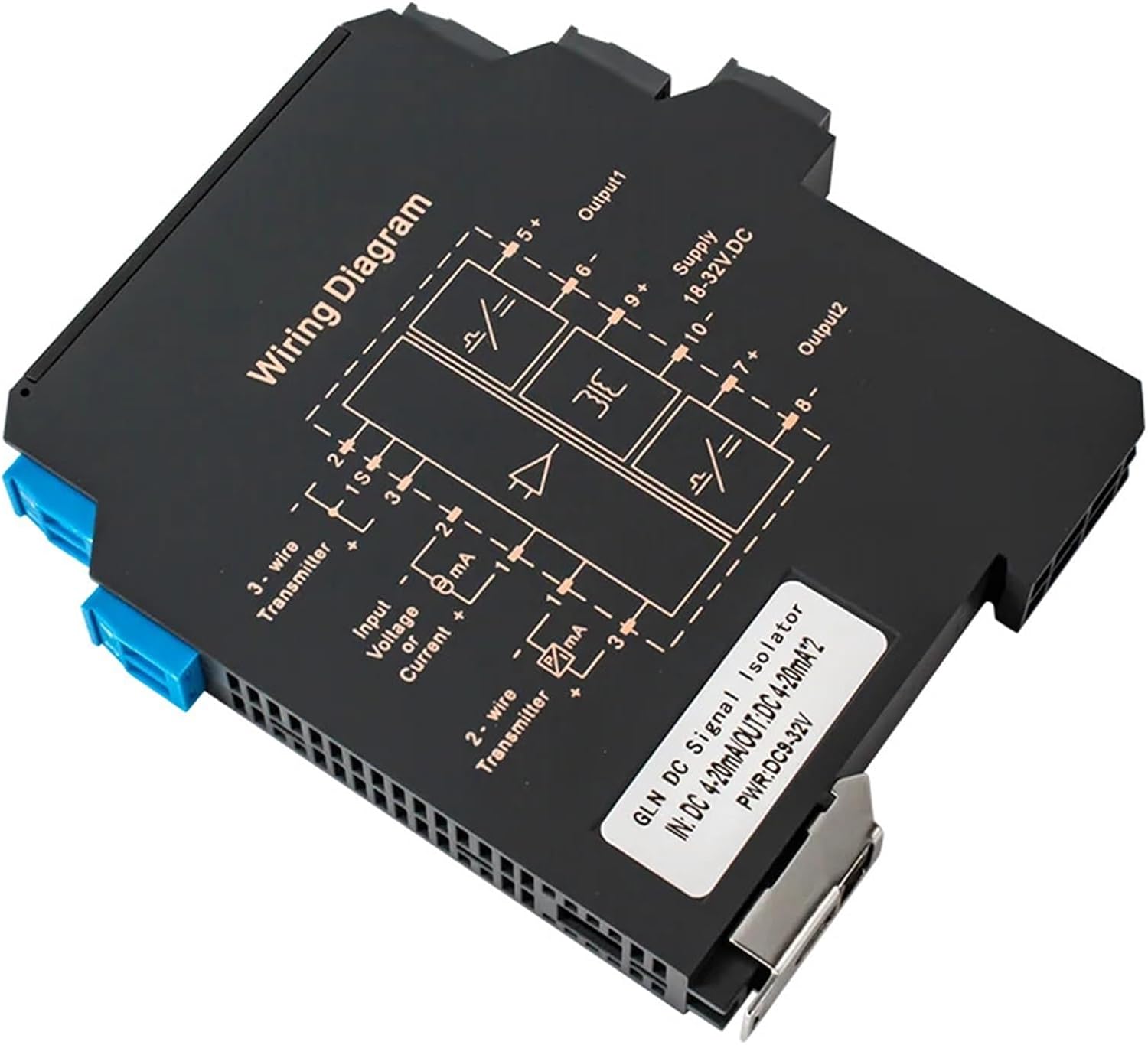

MNEXQML 1PCS Signal Isolator Transmitter Current Voltage Isolation 4-20MA 0-5V 0-10V(1in1out,Output 1-5V_Input 0-10V_DC24V)

Isolation TransformersNotes: The default power supply is 24V.Introduction<;1>. The signal isolator provides isolated distribution power for the field transmitter, isolates the current or voltage signal by the transmitter and transmits the signal to the control room DSC etc.<;2>.Input terminal is in common use for current ,2-wires and 3-wires. The input, output and power are isolated from each other by adopting highly efficient magnetoelectric isolation technology interiorly.<;3>. This product has 2 types,1 in/1 out,1 in/2 out,input and output signal can be .<;4>. Have the advantage of high precision,high linearity and strong anti-interference.Standard 35mm DIN rail independentProduct parametersInputInput Signal4-20mA;0-20mA;0-10mA;0-5V;0-10V;1-5V;Input BurdenCurrent model: 100Voltage model: 300KOverload CapacitySupport 2 times rating value(continuous); 10 times rating value(10s)OutputOutput Signal4-20mA;0-20mA;0-10mA;0-5V;0-10V;1-5V;Output Voltage0-10VDC,0-5VDC;(Load resistance=Input voltage/10mADC)10kOutput Current0-20mADC,4-20mADC;(Load resistance=10VDC/Output current)500Output Ripple0.5%ROOther ParametersAccuracy;±0.1%F.S.Respond Time<;10msPower Consumption1VACompressive StrengthAC2KVrms/minInsulation Resistance>100M( 500V)Working Temperature & Humidity<;80%humidity(non condensing atate)Storage Temperature & Humidity<;70%humidity(non condensing atate)==========Hign-concerned Chemical : NoneDimensions : 100*114.5*12.5mmOperating Temperature : -20~+55 CelsiusSupply Voltage : DC24VAccuracy Class : ;0.1%F.S.Model Number : GLGDisplay Type : Analog OnlyDIY Supplies : ELECTRICALProduct name : Analog Signal IsolatorChannels : 1 in 1 out,1 in 2 outInput signal : 4-20mA, 1-5V,0-1
