ESP32-UNO Board, ESP32-D0WD-V3, Inside Motor Driver, 2.4GHz WiFi + Bluetooth, Microcontroller for IoT and DIY Projects, Support Arduino IDE, USB-C Port

NULLLAB ESP32-UNO BoardDocs: github.com/nulllaborg/esp32-unoUSB Interface: Features a Type-C connector for versatile connectivity, supporting C2C data cables. It integrates the CH340G chip for USB-to-serial communication.Motor Drivers:Dual DC Motor Ports (M0, M1): Each port supports a maximum current of 1.2A. A convenient onboard switch allows for easy toggling between motor driver and general IO pin functionality.Dual Encoder Motor Ports (E0, E1): These ports share drive pins with the DC motor ports.E0: Pin assignments for A, B, +, and - are 19, 18, 27, and 13 respectively.E1: Pin assignments for A, B, +, and - are 23, 5, 4, and 2 respectively.GPIO Pins: Provides 22 general-purpose input/output (GPIO) pins: 0, 2, 4, 5, 12, 13, 14, 15, 16, 17, 18, 19, 23, 25, 26, 27, 32, 33, 34, 35, 36, and 39.Power Input:Supports a 5.5-2.1mm DC barrel jack for power input.Accepts an input voltage range of 6V to 16V.Physical Dimensions: The board measures 68.6mm x 53.4mm, ensuring compatibility with the standard Arduino Uno form factor.ESP-D0WD-V3 Chip448 KB ROM, 520 KB SRAM, 16 KB RTC SRAMQSPI supports multiple flash/SRAMBuilt-in 8 MHz oscillatorSupports self-calibrationBuilt-in RC oscillator, supports self-calibrationSupports external main crystal oscillator from 2 MHz to 60 MHz (if using Wi-Fi/Bluetooth functions, currently only supports 40 MHz crystal oscillator)Supports external 32 kHz crystal oscillator for RTC, supports self-calibration2 Timer groups, each group includes 2x 64-bit general-purpose timers and 1x main system watchdog1 RTC timerRTC watchdogEthernet MAC interface with dedicated DMA, supports IEEE 1588Two-Wire Automotive Interface (TWAI®, compatible with ISO11898-1) x IR (TX/RX)

• Powerful ESP32-DOWD-V3 Core: The ESP32-Uno is built around the ESP32-DOWD-V3 chip, offering a compact, Arduino Uno-sized form factor. It features a 4MB SPI Flash memory and integrates a single-chip solution with 2.4 GHz Wi-Fi and dual-mode Bluetooth.
• Integrated Motor Control: This board is equipped with two channels for encoder motors and two channels for DC motors. The two DC motor ports (M0, M1) can deliver a maximum current of 1.2A. A convenient slide switch on the board allows for easy toggling between motor driver and IO pin functionality. The driver pins for the two encoder motor ports (E0, E1) share connections with the DC motor ports. Specifically, E0 uses pins A:19, B:18, +:27, -:13, and E1 uses A:23, B:5, +:4, -:2.
• Modern Connectivity: Featuring a Type-C USB port that supports C2C data cables, the board also includes the reliable CH340G chip for serial communication.

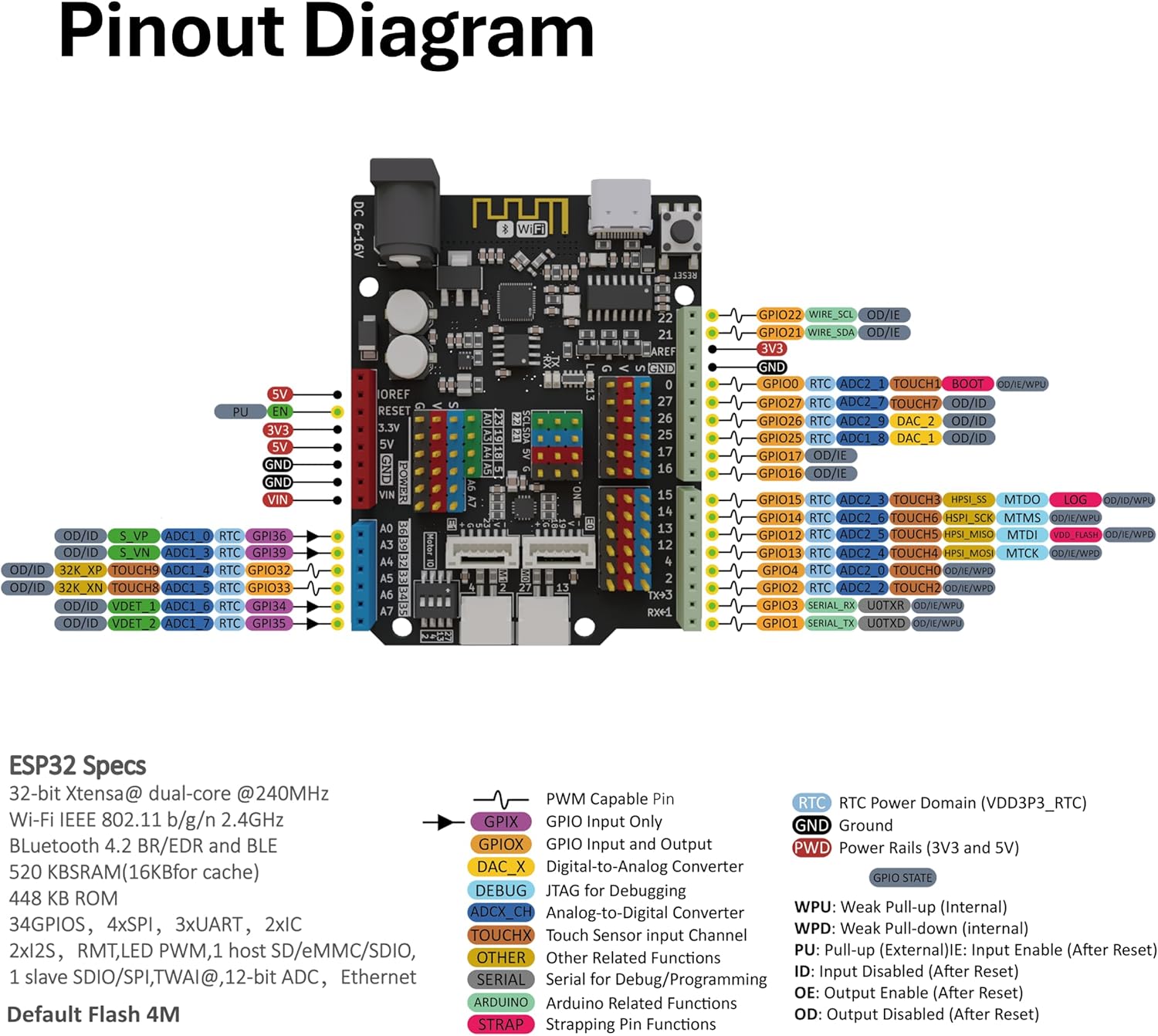

• Extensive IO Support: The ESP32-Uno provides access to 22 GPIO pins, including: 0, 2, 4, 5, 12, 13, 14, 15, 16, 17, 18, 19, 23, 25, 26, 27, 32, 33, 34, 35, 36, and 39.
• Versatile Power and Dimensions: The board supports a 5.5-2.1mm DC jack for power input, accepting voltages from 6V to 16V. With product dimensions of 68.6 x 53.4mm, it is fully compatible with the Arduino Uno mainboard size.
• Docs: github.com/nulllaborg/esp32-uno
