E-Z-HOOK Micro-Hook Test Lead with Stripped Wired end 12" (28 AWG PVC) - Set of 10: Assorted Colors (P713-12-S)

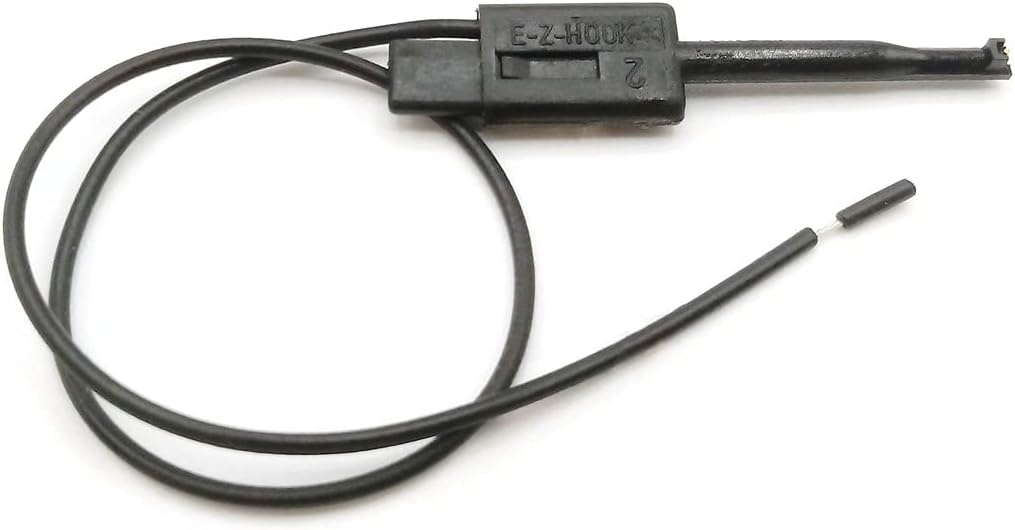

The P713 test lead jumper features a micro-hook (Pico-Hook) test connector (clip) to pre-stripped wire with no connector on the other end. This is the perfect solution for DIY test lead assembly. These test leads each utilize 12 inches of 28 AWG PVC wire. This is a test lead set of 10 assorted colors.

• Connectors: (x2): micro-hook test connectors (clips). Micro-hook is classified as a small sized hook. Housing material is molded nylon and contact blade is gold-plated beryllium copper. Total hook length is 1.73 inches (43.94 mm). Hook fits over components up to a max diameter of 0.025 in (0.64 mm).
• One end of the test lead is pre-stripped wire with no connector on the other end. This is the perfect solution for DIY test lead assembly. This end can be crimped or soldered to another component.
• Tip design permits hook up vertically or horizontally. These hooks are field servicable. An ultra-thin blade and housing to allow hooks to stack for multiple contacts and easy access. Insulation to a single contact point assures accurate readings and the barrier on the tip prevents shorting between components.
• These test leads each utilize 12 inches of 28 AWG PVC (Polyvinyl Chloride) wire. This is a set of 10 assorted colors: black, brown, red, orange, yellow, green, blue, violet, gray, white.
