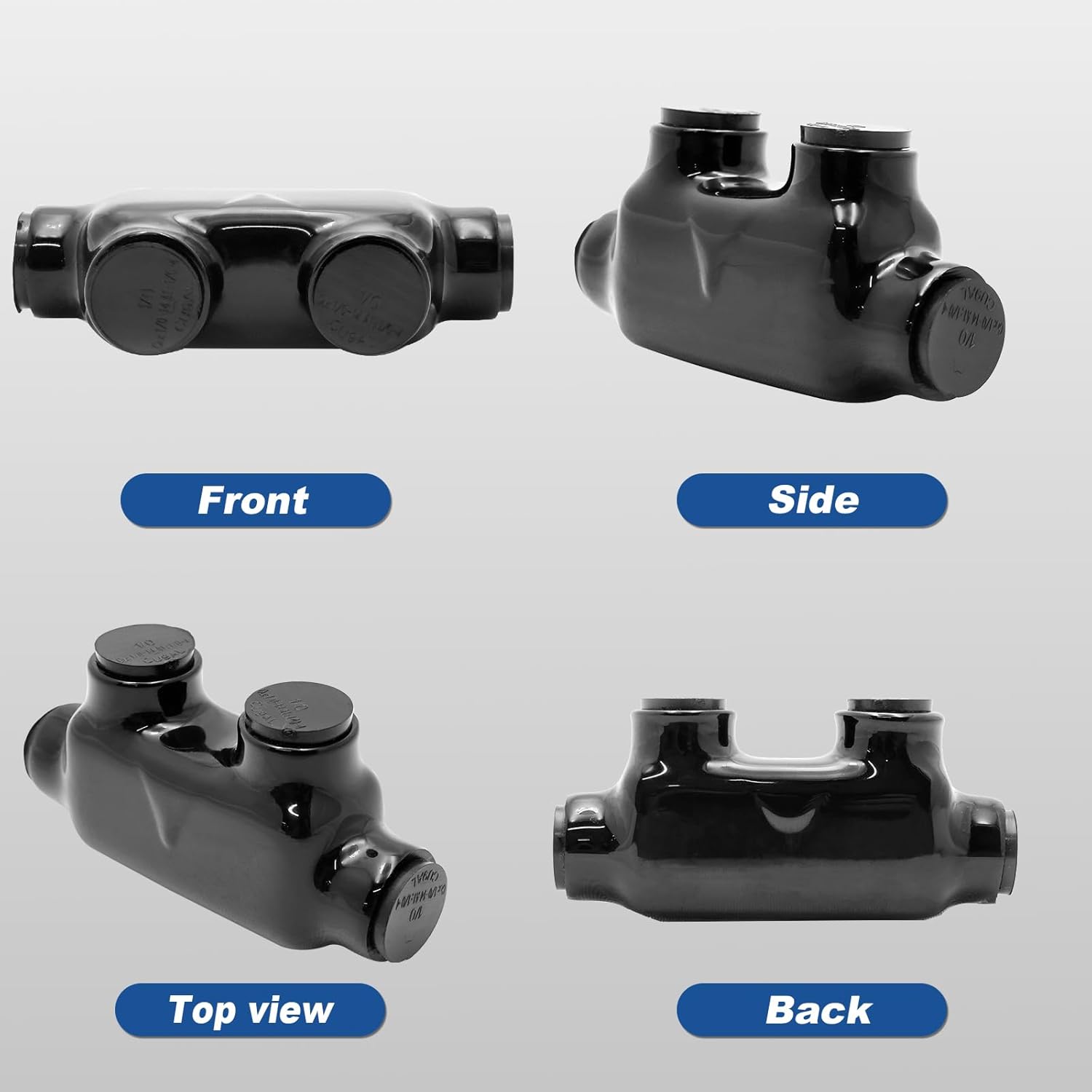

Black Insulated in-Line Splice Alumiconn Connector 2 Set Screws - 1/0-14 Wire Range - 3/16 Allen Hex - Pre-Filled with Oxide Inhibitor, Rubber Vinyl Coating, 6061-T6 Aluminum CU9AL, (15 Pack)
Product details
| Management number | 211028021 | Release Date | 2026/04/04 | List Price | $40.00 | Model Number | 211028021 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

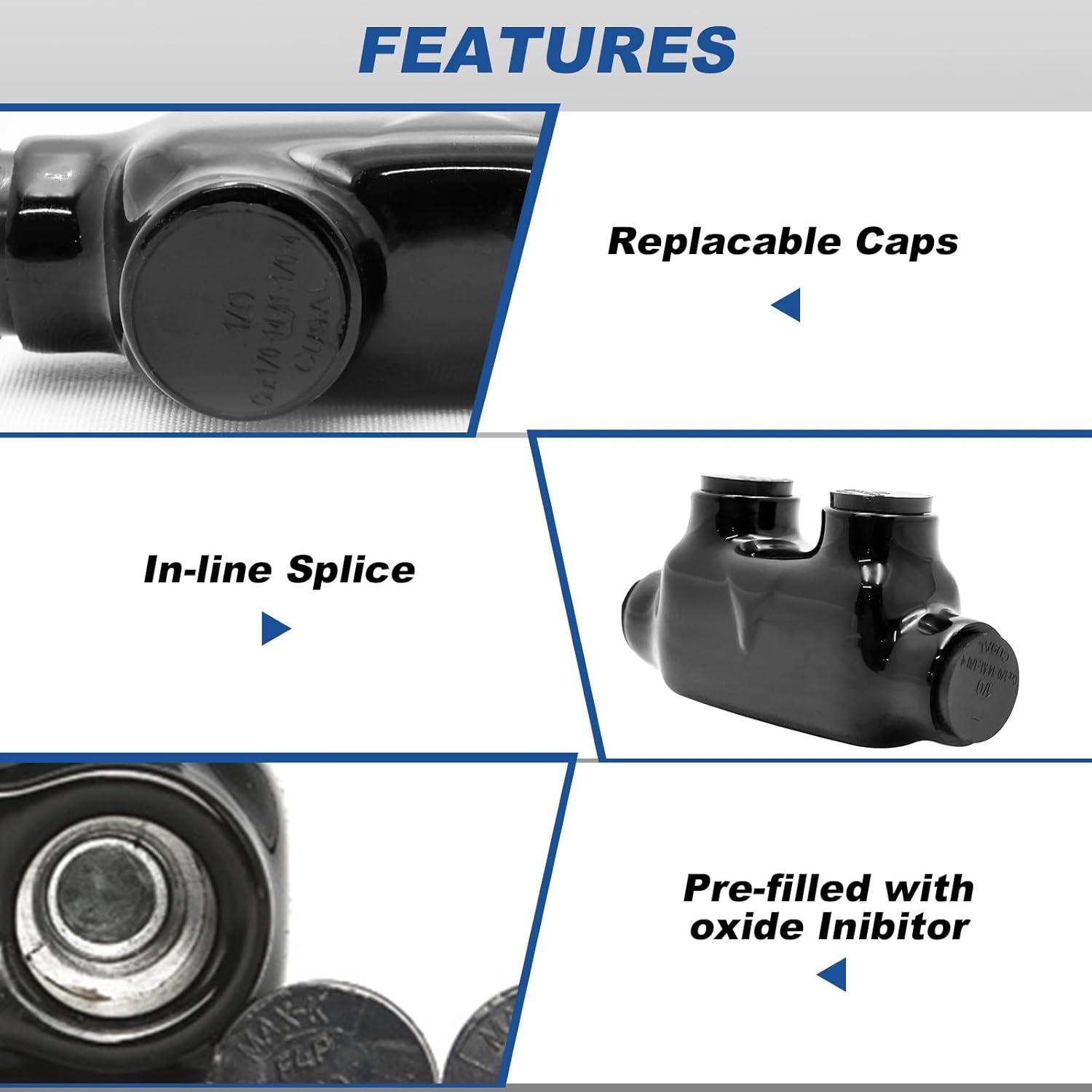

BLACK INSULATED MULTI-CABLEBlack Insulation6061-T6 AluminumInsulated with Rugged High-Dielectric Plastisol Dipped CoatingPre-filled with Oxide InhibitorEasy Re-Entry for Changes, Inspection or TroubleshootingPlugs Marked with Connector Max & Min Wire Size for Easy IDCU9AL Dual Rated for use with Copper and/or Aluminum WireOne Wire Per TerminalTemperature Range of -49°F to 194°F(-45°C to 90°C) 600 VoltRated For Use with 90°C CablesANSI C119.4 & UL 486B listed
- SIZE AND SPECIFICATIONS: Insulated inline connector supports wire gauges ranging from 1/0 to 14 AWG. 3/16" Allen Hex - In-line Splice - 2 Set Screws - 15 Packs
- FAST INSTALLATION: Pre-filled with Oxide Inhibitor - Simple to Remove and Re-Insert Cables - Terminal Covers with Maximum and Minimum Wire Gauge Sizes
- EXCELLENT CONSTRUCTION: UL Listed Insulated Splice with Rugged High-Dielectric Plastisol Dipped Coating - Max Torque: 215
- DUAL RATED WIRE SPLICE: Dual rated 6061-T6 Aluminum CU9AL - For use with Copper and/or Aluminum Wire Cables - One Wire Per Terminal - Indoor Use
- Suitable for use with 194°F (90°C) Cables - Temperature range: -49°F to 194°F (-45°C to 90° C). - 600 Volts
| Color | Black |
|---|---|
| Gauge | 1/0-14 |
| Model | IC-015 |
| Terminal | Screw Terminal |
| Stud Size | 3/16 |
| Brand Name | Amliber |
| Manufacturer | Amliber |
| Material Type | Nylon |
| Connector Type | Butt Splice, Multi-Stud, Quick Connect, Quick Disconnect |
| Maximum Voltage | 600 Volts |
| Contact Material | Alloy Steel |
| Specification Met | UL |
| Temperature Rating | -49°F to 194°F |
| Included Components | 15PCS Black insulated Connector |
| Insulation Material Type | Polyvinyl Chloride |
| Item Dimensions L x W x H | 5.3"L x 5.3"W x 3.7"H |
